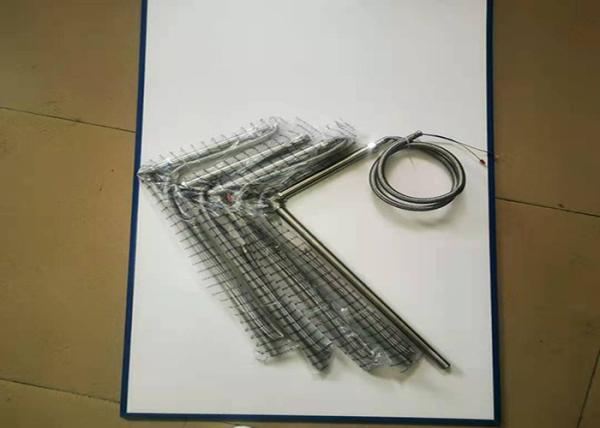

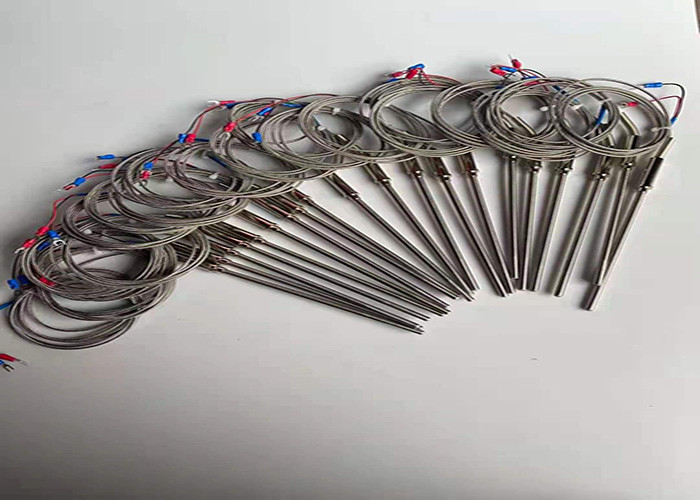

Zinc Die Casting Machine Spare Parts For Temperature Sensor
Product Decription:
This product is to inspect temperature which is important of the
machine part.
hot chamber die casting machine specification
| Item | Unit | RDH18 | RD38T | RD50T | RD88T | RD138T |
| Die Locking Force | KN | 180 | 380 | 500 | 880 | 1380 |
| Die Stroke | MM | 150 | 200 | 235 | 250 | 290 |
| Ejection Fore | KN | / | 34 | 52 | 52 | 110 |
| Ejection Stroke | MM | / | 40 | 60 | 60 | 85 |
| Die Thickness(Min~Max) | MM | 100-300 | 100-330 | 100-340 | 100-350 | 150-450 |
| Die Dimension | MM | 385×360 | 450×480 | 470×503 | 535×578 | 620×670 |
| Tie-bar Inner Spacing(V×H) | MM | 236×236 | 290×290 | 310×310 | 357×357 | 415×415 |
| Tie Bar Diameter | MM | 40 | 50 | 56 | 63 | 75 |
| Injection Port Position | MM | / | 0,-40 | 0,-50 | 0,-60 | 0,-80 |
| Injection Stroke | MM | 90 | 125 | 130 | 130 | 150 |
| Traverse Stroke | MM | 150 | 150 | 190 | 190 | 200 |
| Injection Fore | KN | 27 | 40 | 55 | 90 | 110 |
| Plunger Tip Diameter | MM | 35 | 40 | 45 | 50 | 55 | 50 | 60 | 65 |
| Specific Presure | Mpa | 28 | 32 | 25.4 | 26.9 | 22.2 | 34 | 38.9 | 33.1 |
| Shot weigh(Zn) | kg(Zn) | 464 | 0.78 | 0.98 | 1.26 | 1.53 | 1.26 | 2.1 | 2.46 |
| Hydraulic Pressure | Mpa | 7 | 10.5 | 10.5 | 10.5 | 14 |
| Electric Motor Capacity | KW | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Volume of Crucible(Zn) | L/kg(Zn) | 20/150 | 50/325 | 55/360 | 55/360 | 55/360 |
| Volume of Oil | L | 180 | 200 | 200 | 240 | 300 |
| Machine Weight | TON | 1.5 | 3 | 3.4 | 3.6 | 6 |
| Over All Dimensions | m(L×W×H) | 2.5×1.2×1.7 | 3.47×1.3×1.7 | 3.95×1.38×1.9 | 3.95×1.38×1.9 | 4.51×1.51×2.3 |
| Item | Unit | RD160T | RD200T | RD300T | RD400T |
| Die Locking Force | KN | 1600 | 2000 | 3000 | 4000 |
| Die Stroke | MM | 340 | 390 | 460 | 550 |
| Ejection Fore | KN | 110 | 110 | 150 | 180 |
| Ejection Stroke | MM | 85 | 100 | 95 | 125 |
| Die Thickness(Min~Max) | MM | 150-550 | 200-580 | 250-660 | 300-750 |
| Die Dimension | MM | 670×670 | 760×760 | 870×870 | 1030×1030 |
| Tie-bar Inner Spacing(V×H) | MM | 465×465 | 510×510 | 560×560 | 620×620 |
| Tie Bar Diameter | MM | 80 | 90 | 110 | 130 |
| Injection Port Position | MM | 0,-80 | 0,-100 | 0,-125 | 0,-125 |
| Injection Stroke | MM | 150 | 175 | 200 | 230 |
| Traverse Stroke | MM | 200 | 214 | 255 | 340 |
| Injection Fore | KN | 110 | 130 | 158 | 182 |
| Plunger Tip Diameter | MM | 60 | 65 | 70 | 75 | 70 | 75 | 70 | 80 |
| Specific Presure | Mpa | 38.9 | 33.1 | 34.6 | 30.1 | 41.1 | 35.8 | 48.3 | 37 |
| Shot weigh(Zn) | kg(Zn) | 2.1 | 2.46 | 3.33 | 3.83 | 3.81 | 4.37 | 4.4 | 5.7 |
| Hydraulic Pressure | Mpa | 14 | 14 | 14 | 14 |
| Electric Motor Capacity | KW | 15 | 18.5 | 18.5 | 22 |
| Volume of Crucible(Zn) | L/kg(Zn) | 55/360 | 110/720 | 110/720 | 200/1350 |
| Volume of Oil | L | 300 | 400 | 600 | 800 |
| Machine Weight | TON | 6.5 | 8.5 | 11 | 17.5 |
| Over All Dimensions | m(L×W×H) | 4.8×1.51×2.3 | 5.6×1.7×2.4 | 5.6×1.7×2.4 | 7.4×1.9×2.55 |
